Scaffolding Materials

Safetyrise provides quality scaffolding material for Rental, Hire and Supply basis in Pan India Basis we are provide specialised material with complete solution of difference design and size, for any type of structure such as Steam Boilers, Recovery Boilers, Cyclone, Chimney, Kiln, Silo, Heat Exchangers, Vessels which generally used during shutdowns & turn arounds. We provide MS & GI Scaffolding Material which confirms to BS EN 1139 with High Tensile Tubes and clamps EN 74 Standards with test certificates. Scaffolding Material Specifications are IS 2750 and IS 1161, BS 1139, BS EN 74, TG 20:13 for more details please find the details below

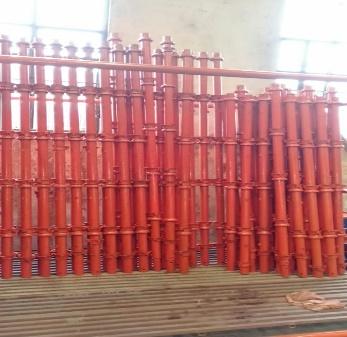

MS Painted Vertical Standard Cuplok Type.

  • Sizes:
  • 2Mtrs, 2.5Mtrs, 3Mtrs
  • Class:
  • B (3.2mm Thickness)
  • Type
  • MS (ERW Pipe)
  • Each Cup at
  • 500MM
  • Bottom Cup
  • 80MM
  • Top Cup
  • 420MM

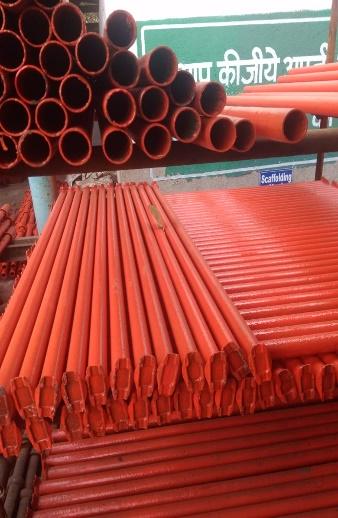

MS Painted Horizontal Ledger Cuplok Type.

  • Sizes:
  • 1.2Mtrs, 1.5Mtrs, 1.8Mtrs, 2.4Mtrs
  • Class:
  • B (3.2mm Thickness)
  • Type
  • MS (ERW Pipe)
  • Each Cup:
  • Blade

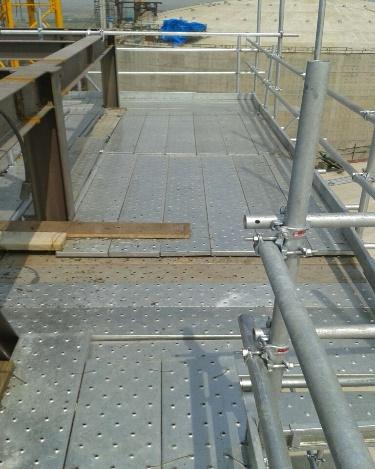

Anti-Skid Planks with hook/ without hook arrangements.

  • Sizes:
  • Without hook planks- (L)*(W) 2000 x 225mm 2000 x 280mm 2400 x 225mm 2400 x 280mm
  • With hook planks-
  • 1800 x 280mm

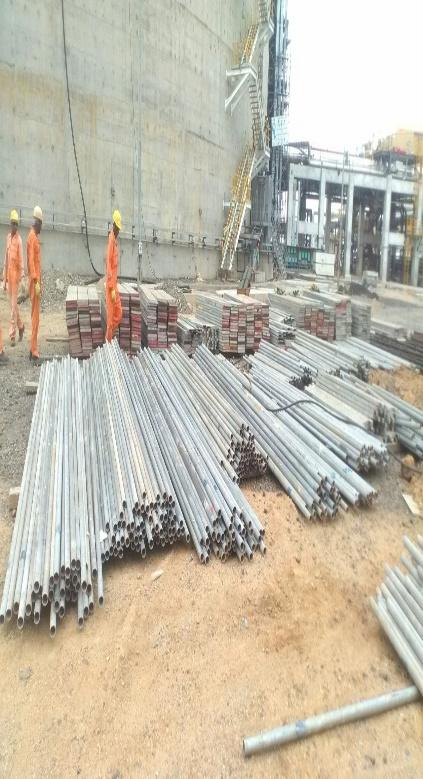

40 NB GI Pipe for Scaffolding.

  • Sizes:
  • 1m, 1.5m, 1.8m, 2m, 2.5m, 3m, 4m, 5m, 6mtrs.
  • Class:
  • B(3.2mmthicknes) 48.3mm OD,40mm Nominal Bore
  • Type
  • GI

Aluminium Access Ladders Straight/ Portable Ladder.

  • Sizes:
  • 3m, 4m
  • Dimensions:
  • 300mm x 300mm

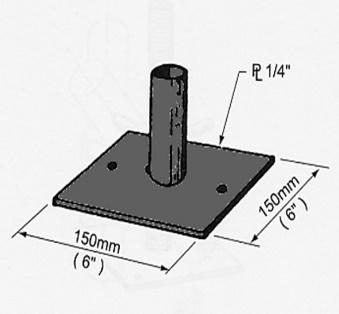

Fixed Base Plate.

  • Dimensions:
  • 150mm x 150mm x 6mm (Thickness)
  • Shank Height:
  • 150mm
  • Made:
  • MS

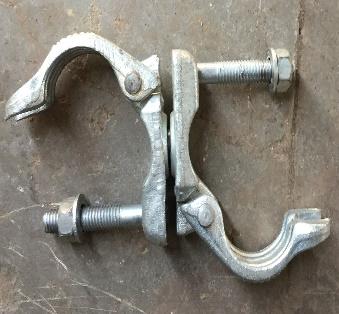

RAC/ Fix/ Double Clamp Drop Forged

  • Dimensions:
  • 48mm x 48mm
  • Class:
  • EN 74 -B
  • Type:
  • Drop Forged

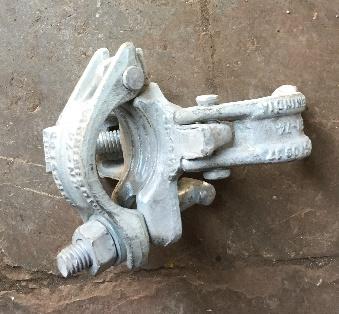

Swivel Clamp/ Round Clamp Drop Forged.

  • Dimensions:
  • 48mm x 48mm
  • Class:
  • EN 74 -
  • Type
  • Drop Forged

Single Clamp/ Putlog Clamp

  • OD:
  • 48mm
  • standard:
  • BS 1142
  • Type:
  • GI

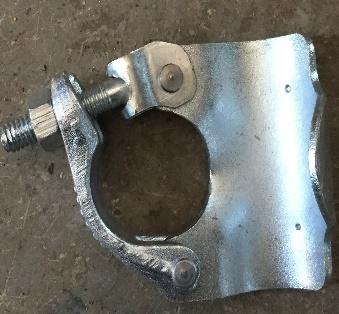

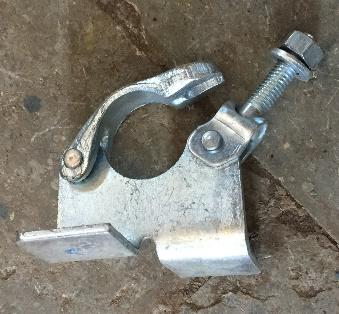

Board Retaining Clamp/ Board Clamp.

  • OD:
  • 48mm
  • Standard:
  • BS 1139
  • Type
  • GI

Girder Beam/ Grave lock Coupler GI

  • OD:
  • 48mm
  • standard:
  • BS 1149
  • Type:
  • GI

Sleeve Coupler/ External Joint box.

  • OD:
  • 48mm
  • Standard:
  • BS 1141
  • Type
  • GI /MS

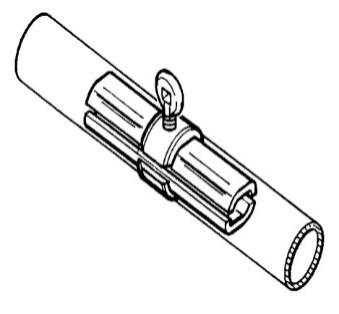

Joint Pin / Internal Joint Pin

  • OD:
  • 48mm
  • standard:
  • BS 1141
  • Type:
  • GI/ MS

Adjustable Base Jack/ Screw Jack

  • Dimensions:
  • 150MM(Length) * 150MM(Width)* 06/08MM (Thickness)
  • Shank Height:
  • 450MM, 650MM, 750MM, 880MM, 900MM

Swivel Base Jack, Rocking Screw Jack.

  • Dimension:
  • 180MM* 180MM* 8MM
  • Maximum Angle:
  • 45 Degree in both direction

Sole Board/ Sole Plate

  • Dimensions:
  • 300MM*300MM* 38MM (thickness)
  • MADE:
  • Solid Wood
